Facility Capabilities
Engineered to deliver consistent, certified performance across the most demanding surface finishing applications.

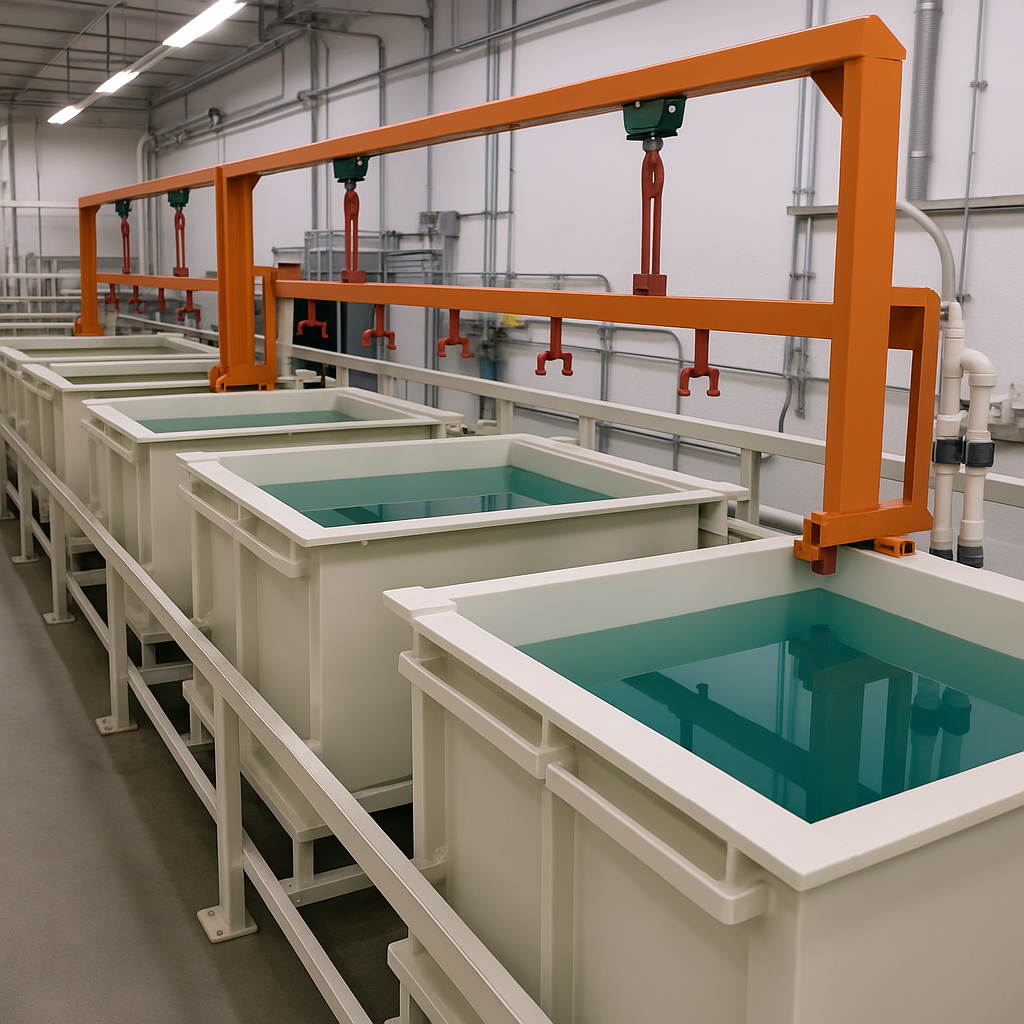

Electropolishing Systems
- Automated and manual electropolishing lines
- Surface finishes achieving Ra ≤ 10 µin
- Expertise in 316L, 17-4PH, Inconel, Titanium
- Component capacity: up to 48 inches

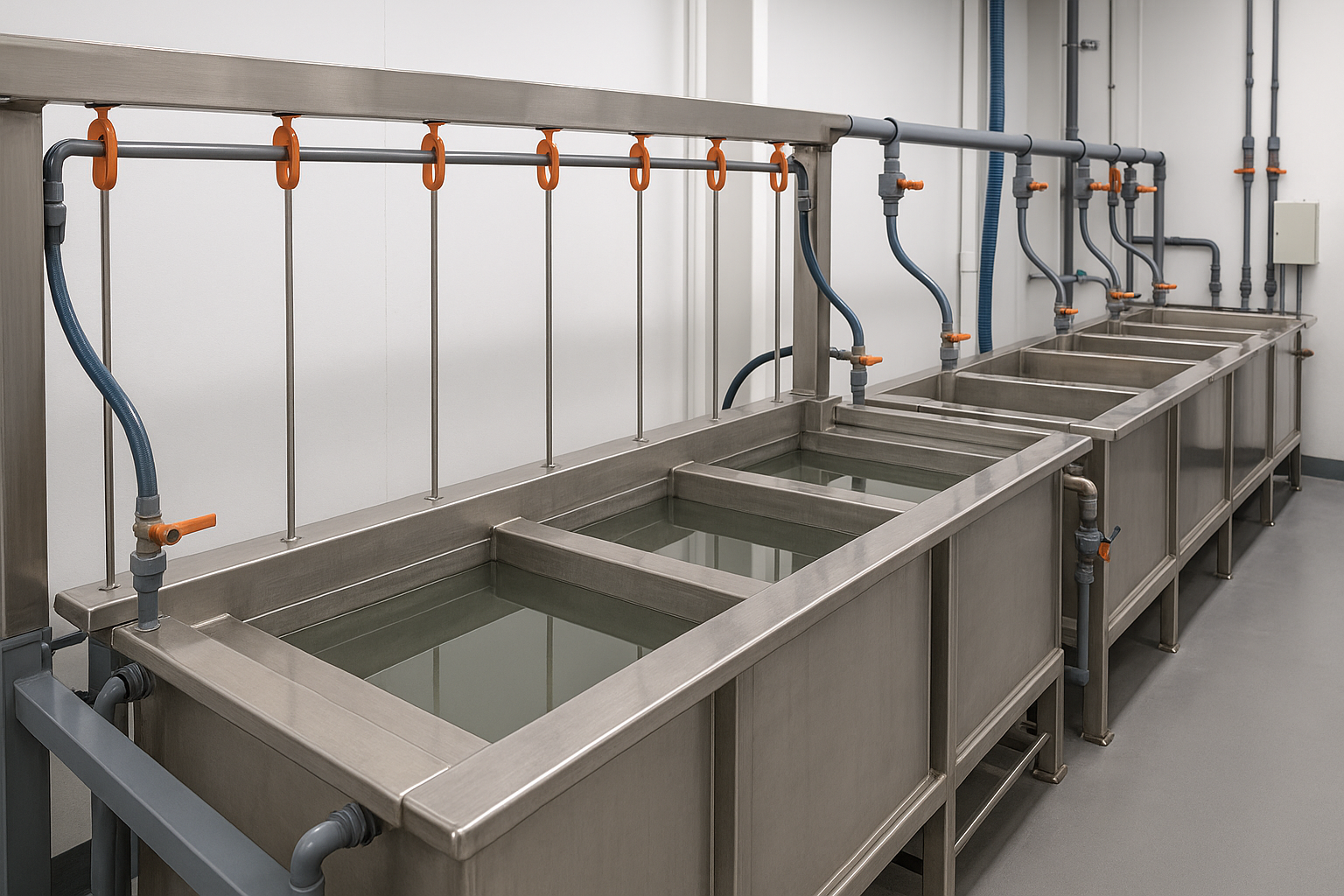

Passivation Lines
- Nitric and citric acid processes available
- Compliant with ASTM A967 and AMS 2700
- Custom racks for small and large assemblies

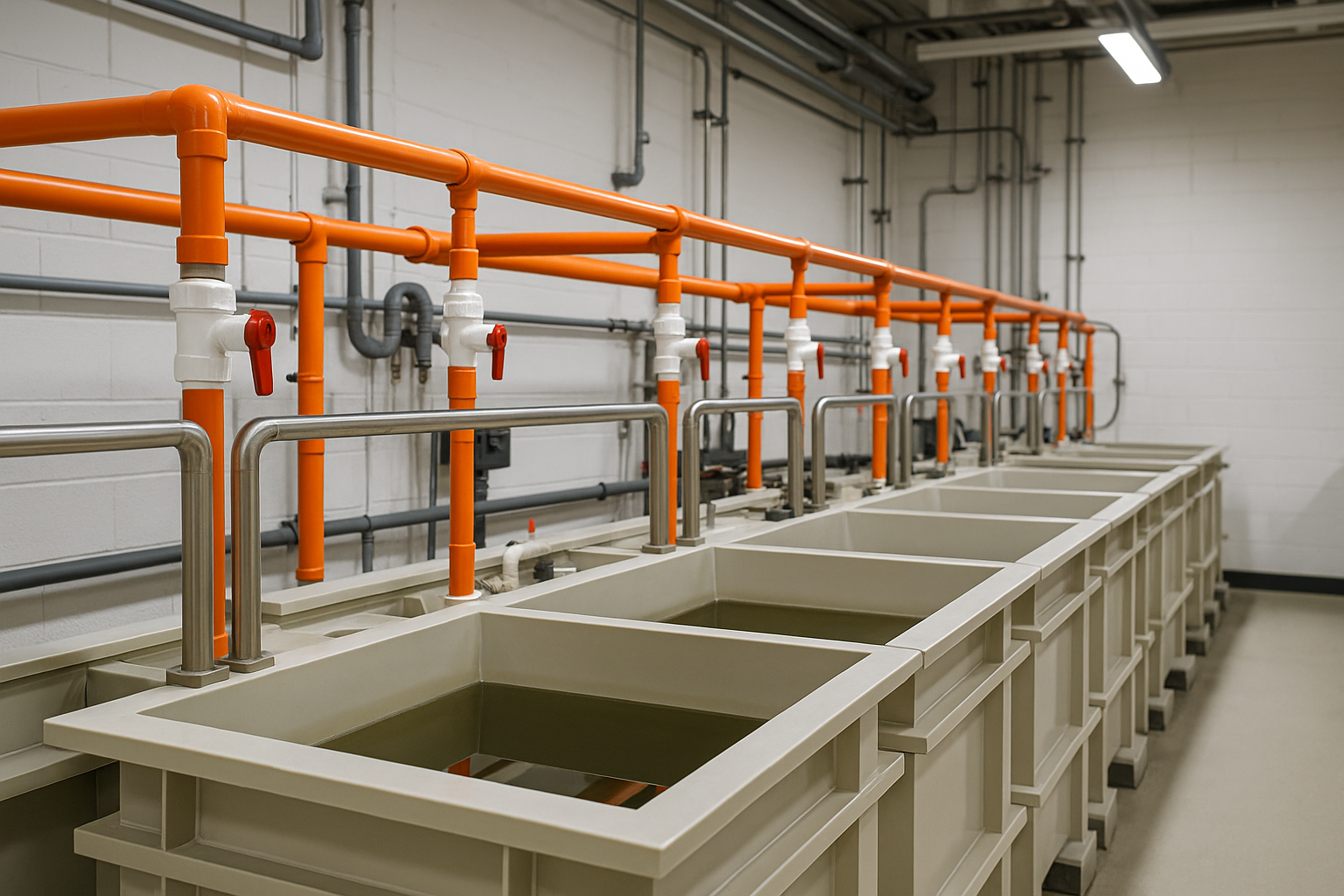

Metal Plating Capabilities
- Gold plating (MIL-DTL-45204)
- Nickel plating (AMS 2404)
- Silver, copper, and tin plating options
- Selective and full-coverage applications
Inspection and Testing
- Magnified visual inspection

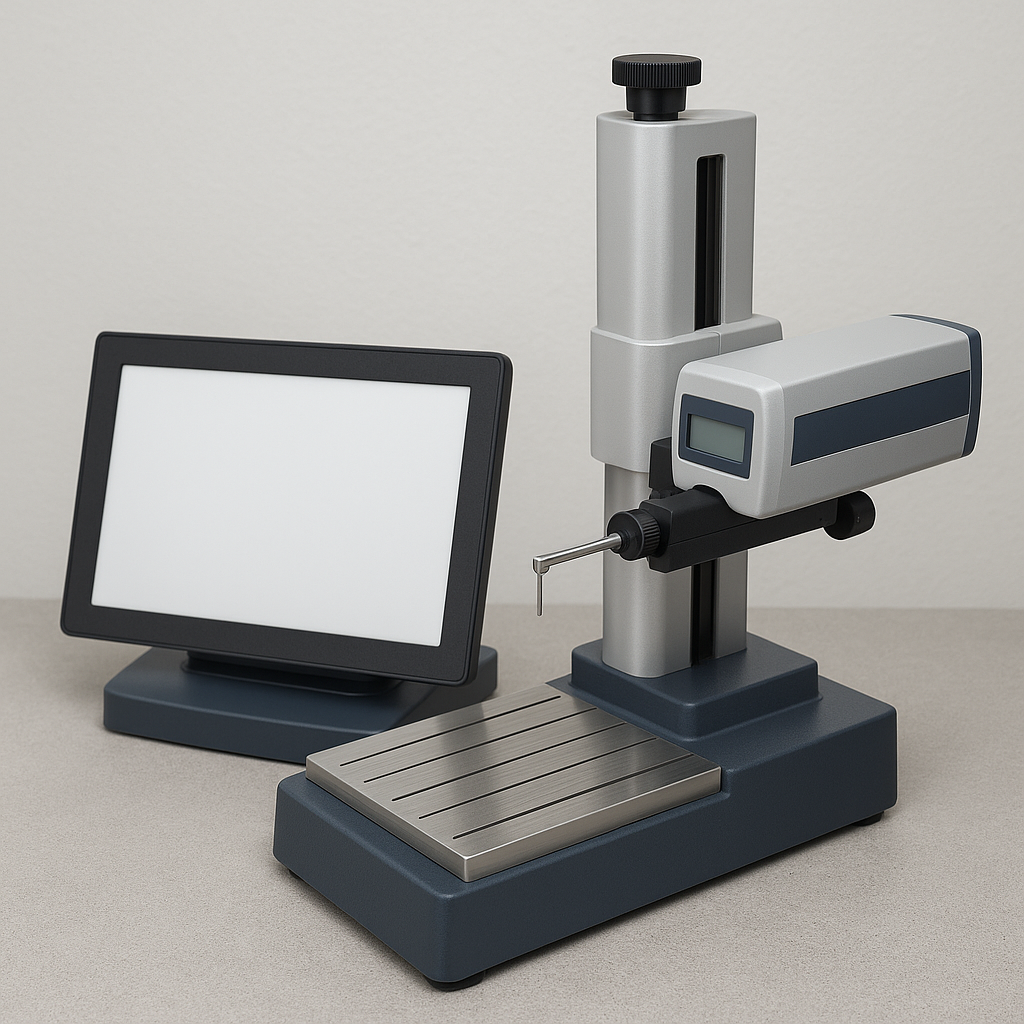

- Surface roughness measurement (profilometry)
- Non-destructive coating thickness verification
- Salt spray and corrosion resistance support

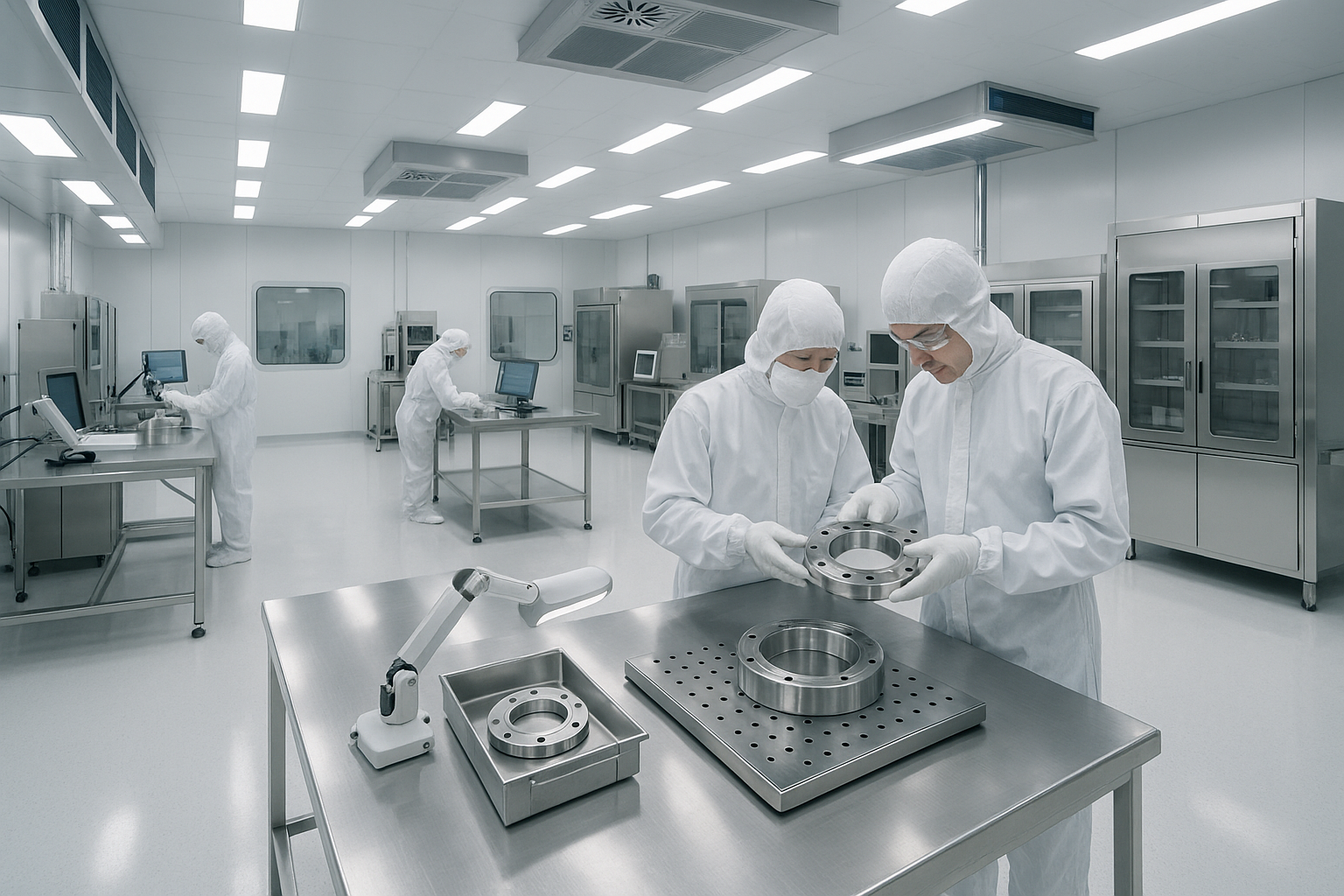

Cleanroom-Compatible Finishing
Our team adheres to clean handling protocols aligned with Class 1000 and ISO 7 cleanroom standards, ensuring minimal particulate contamination. For customers in the semiconductor, aerospace, and medical sectors, we offer optional clean packaging, final rinsing with DI water, and documented cleanroom-compatible processing upon request.
